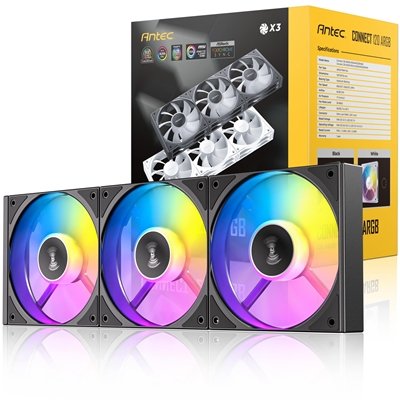

CONNECT 120 ARGB

INTUITIVE INTERLOCKING SYSTEM
Connect the fans internally with each other to streamline the installation process

3 FANS 4 SCREWS
Interlocking system helps you mount multiple fans using less screws.

EASIER INSTALLATION WITH LESS CABLES
Daisy Chain design with less cables needed.

PWM ARGB FAN
Strong and stable airflow in quiet operation.

ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration pads effectively reduce vibration and noise.

FAN INSTALLATION
attention to the cable outlet when installing fan covers; the outlet should be positioned over the male connector.

ARGB LIGHTING EFFECT SYNC
Extendable 3-Pin Daisy-Chain ARGB connector provides a much easier way to integrate lighting effect with motherboard and other components.

Specification

Fan Type
ARGB PWM Fan

Dimensions
120 x 120 x 25 mm

Bearing Type
Hydraulic Bearing

Fan Speed
800±10%~ 1500±10% RPM

Airflow
65.08 CFM

Air Pressure
1.7 mmH2O

Fan Noise Level
28 dB(A)

Lifespan
30,000/ hrs 25°C

Connector
FAN: 4-pin PWM
LED: 3-pin

Rated Voltage
FAN: DC 12 V
LED : DC 5 V

Operation Voltage
FAN: DC 6.0-13.2 V
LED : DC 4.5-5.2 V

Rated Current
FAN: = 0.29A
LED : = 0.28A

Warranty
1 year
