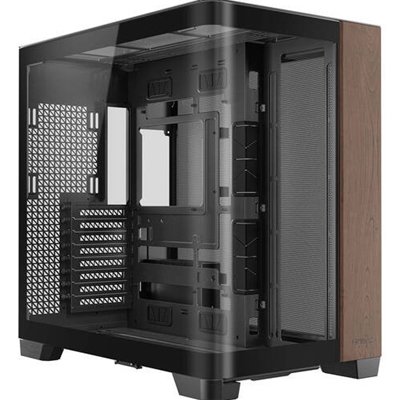

C8 Curve Wood

Super wide angle single curved glass with exotic wood
C8 Curve Wood employs single piece of curved tempered glass panel which provides an uninterrupted panoramic view. Right side of front is made of wood (walnut) that could be seamlessly integrated into your interior design style.

Support Back-Connect Motherboards
Plug in cables from behind to give front a cleaner look and a smoother airflow channel.

Vertical Cooling
Can accommodate three 120mm/140mm or two 160mm fans each on top and bottom for efficient GPU cooling.

Bottom fan configuration
Comes with interchangeable fan brackets to cater to fans of different sizes.

Dual Chamber
Independent cooling for CPU/GPU on the left side & PSU/Drives on the right side.

Best Cooling Design
Support 3 x 360mm radiators on top, bottom, and side simultaneously for liquid cooling.

Cavernous space for extreme liquid cooling
Top, bottom and right side all support THICK 360mm radiators, providing ultra cooling capability and efficiency.

Best Cooling Design
Up to 10 fans simultaneously.
Supports 2 x 160mm fans on top / 2 x 160mm fans on bottom / 1 x 140mm fan at rear

Air intake and dust filter
Top – Full mesh panel
Right Side – Full mesh panel
Bottom – Full-sized pull-out dust filter

0.8mm + 1.0mm thick steel & Tool-Free design
The ultra robust 0.8mm & 1mm steel brings unwavering protection, and the tool-free quick-release panels on the front, top and sides make the assembly and cleaning of components simplified than ever.

I/O Panel
Mainstream Type-C (10Gbps) port for high-speed transmission
Dust plugs for dust prevention
Mic/Audio 2-in-1 port

Modular Drive Trays
Supports up to 3 drives: 1 *3.5″ HDD & 2* 2.5″ SSD

Extensive Interior

Motherboard support E-ATX(= 280 mm), ATX, Micro-ATX, ITX
CPU cooler max height = 175mm
GPU max length = 440mm
Power Supply max length = 210mm

Specifications

Main Spec

Dimensions
464 x 303 x 476mm (DWH)

Form Factor
Full Tower

Materials
Steel + Plastic + Glass + Wood

Mainboard Support
E-ATX(280mm), ATX, M-ATX, ITX

Front Access & Controls
Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1,
Headphone/Mic Combo Jack

Side Panel
4mm Tempered Glass

Drive Bays

Expansion Slots
8

3.5″
1

2.5″
2

Fan SUpport

Top
3 x 120 / 3 x 140 / 2 x 160mm

Side
3 x 120 / 2 x 140mm

Bottom
3 x 120 / 3 x 140 / 2 x 160mm

Rear
120 / 140mm

Radiator Support

Top
120 / 140 / 240 / 280 / 360mm

Side
120 / 140 / 240 / 280 / 360mm

Bottom
120 / 140 / 240 / 280 / 360mm

Rear
120mm

Clearance

Max GPU Length
= 440mm

Max CPU Cooler Height
= 175mm

Max PSU Length
(Not include cable)= 210mm

Miscellaneous

Dust Filter
Bottom

Net Weight
10.78 Kg

Gross Weight
14.18 Kg

Warranty
2 Years
