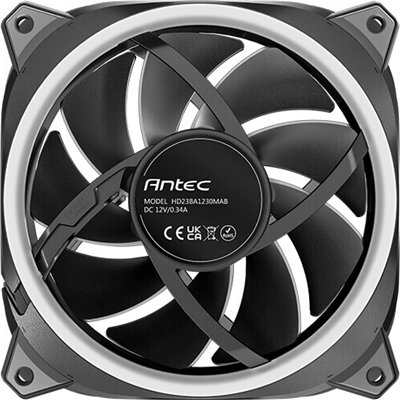

Neo Prizm T3 120 ARGB PWM FAN Black/White

DUAL LIGHTING RINGS
The dual lighting rings contain multiple individual LEDs, presenting lighting effects on both the front and back side

30MM THICKNESS FOR SUPREME PERFORMANCE
Increasing the thickness to 30mm makes the contact surface wider and air inlet area bigger between the fan and the chassis, delivering more airflow.

9 LONG FAN BLADES
Enhance the air pressure while providing a stable airflow.

VIBRATION-ABSORBIBG & ANTI-NOISE PADS
8 anti-vibration rubber pads effectively reduce vibration and noise.

Specifications

Model Name
Neo Prizm T3 120 ARGB

Fan Type
ARGB PWM Fan

Dimensions
120 x 120 x 30 mm

Bearing Type
Hydro Bearing

Fan Speed
600 ± 200 – 2000 ± 10%RPM

Airflow
min 19.24 CFM ~ max 69.86 CFM

Air Pressure
min 0.18 mmH2O ~ max 2.05 mmH2O

Fan Noise Level
9.73~31.62dB(A)

Lifespan
40,000 hours

Connector
FAN: 4-pin PWM | LED: 3-pin

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.3 V

Rated Current
FAN : = 0.34 A | LED : = 0.72 A

Warranty
2 Years
