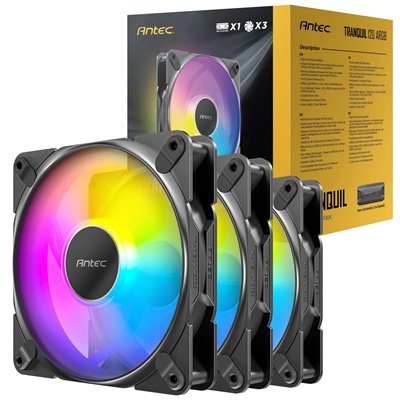

Antec Tranquil 120 ARGB PWM Fan – 3 PACK

TRANQUIL & POWERFUL
Unique fan blade and frame design offers powerful airflow with low noise accomplished.

EXQUISITE CRAFTSMANSHIP
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.

FLUID DYNAMIC BEARING
Reduces friction between shaft and bearing for longer life and minimal noise.

VIBRATION-ABSORBING & ANTI-NOISE PADS
Equipped with eight damping feet to prevent resonance, reducing noise effectively.

EMINENT COOLING PERFORMANCE
Airflow – 64.02 CFM
Air Pressure – 2.45 mmH^2O
noise Level – 26.9 dB(A)

ARGB & PWM FAN CONTROLLER INSTALLATION
ARGB PWM Case Fan
4-Pin 12V PWM cable
3 – Pin 5V ARGB Cable

ARGB Sync/PWM
Signal Cable

3- Pin ARGB Header
Motherboard

4-Pin PWM Header
Motherboard

Power Supply
SATA Power Cable
LED Button Cable

CABLE & CONNECTOR
Durable Woven Wire
Covered with durable woven wire to enhance the lifetime & create unique aesthetics

3-Pin 5V ARGB Cable
Cable length 500 mm

4-Pin 12V PWM Cable
Cable length 500 mm

Specifications

Fan Type
ARGB PWM Fan
3 PACK

Dimensions
120 x 120 x 25 mm

Bearing Type
FDB Bearing

LED Type
Addressable RGB

Fan Speed
400+100-2000+150 RPM

Airflow
64.02 CFM

Air Pressure
2.45 mmH2O

Fan Noise Level
26.9 dB(A)

Lifespan
50,000/ hrs 25 degree C

Connector
Fan 4-pin (PWM) / LED 3-Pin

Rated Voltage
Fan SC 12 V / LED DC 5 V

Operation Voltage
Fan DC 7.0 – 13.8 V / LED DC 4.0 – 5.5V

Rated Current
Fan < 0.20 A / LED < 0.30 A Warranty
2 Years
