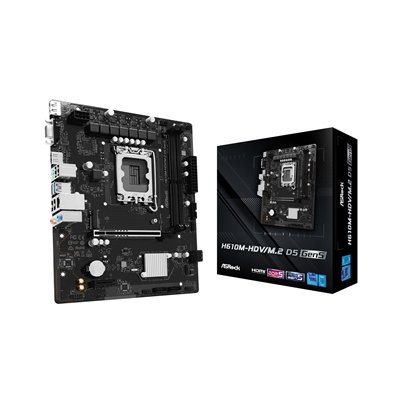

H610M-HDV/M.2 D5 Gen5

Unique Feature
Superb Productivity
– PCIe Gen5 (Graphics)
– Dual Channel DDR5
Rock-Solid Durability
– 6+1+1 Power Phase
– ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
EZ Update
– ASRock Auto Driver Installer

CPU
– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– Supports Intel® Hybrid Technology
– Supports Intel® Turbo Boost Max 3.0 Technology

Chipset
– Intel® H610

Memory
– Dual Channel DDR5 Memory Technology
– 2 x DDR5 DIMM Slots
– 14th and 13th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 5600*
– 12th Gen Intel® Core™ Processors support DDR5 non-ECC, un-buffered memory up to 4800*
– Max. capacity of system memory: 128GB*
– Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support

Graphics
– Intel® Xe Graphics Architecture (Gen 12)
– 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
– 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
– 1 x D-Sub, supports max. resolution up to Full HD (1920×1080) 60Hz

Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Realtek 8111H

Wireless LAN
N/A

Slots
CPU:
– 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE2)

Storage
Chipset:
– 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors

RAID
N/A

USB
Chipset:
– 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
– 6 x USB 2.0 (4 Rear, 2 Front)

Connector
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports
– 4 x USB 2.0 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)*
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash

Accessories
– 1 x I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket

Form Factor
– Micro ATX Form Factor: 9.6-in x 7.6-in, 24.4 cm x 19.3 cm
– Solid Capacitor design

OS
– Microsoft Windows® 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
