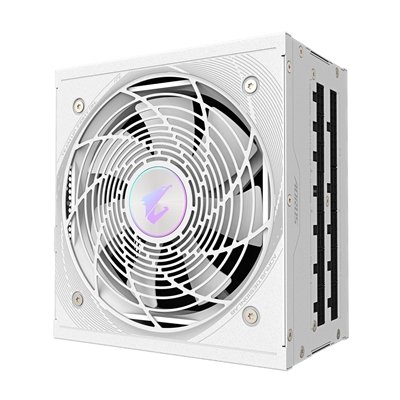

The AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 ICE (GP-AE1000PM PG5) is a high-performance power supply unit designed for demanding applications. Here’s a detailed description and specification:

80 PLUS Platinum Certified: Ensures 92% efficiency at 50% load, reducing power waste, heat, and fan noise.
Fully Modular Design: Allows for better airflow and improved thermal performance by using only the necessary cables.
Compact Design: Measures just 140 mm in length, making it suitable for space-constrained chassis.
High-Quality Components: Equipped with 100% Japanese capacitors for efficient performance and reliability.
120mm Smart Fluid Dynamic Bearing (FDB) Fan: Reduces noise and extends lifespan by using oil film shock absorption technology.
Powerful Single +12V Rail: Provides the best power output, stability, and compatibility for hardware, especially beneficial for overclocking.
Protection Features: Includes OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection), and OCP (Over Current Protection).
10-Year Warranty: Offers a long-term warranty adjusted according to different regions.

Output Power:
1000W

Efficiency:
80 PLUS Platinum

Form Factor:
ATX 3.0

Modular Design:
Fully Modular

Fan Type:
120mm Smart Fluid Dynamic Bearing (FDB) Fan

Protection:
OVP, OPP, SCP, UVP, OTP, OCP

Cable Type:
High-quality, native 16-pin cable for PCIe Gen 5.0 compatibility

Capacitors:
100% Japanese capacitors

Dimensions:
140 mm (L) x 150 mm (W) x 86 mm (H)

Connections
ATX/MB 20+4 Pin: 1 (650mm)
CPU/EPS 4+4 Pin: 2 (700mm each)
PCIe 16 Pin: 1 (700mm, for PCIe 5.0 graphics cards)
PCIe 6+2 Pin: 6 – 2 (650mm + 150mm) 4 (750mm)
SATA: 8 – 4 (600mm + 150mm) 4 (150mm)
4 Pin Peripheral: 4 – 2 (500mm + 150mm) 2 (150mm)

Warranty:
10 years
