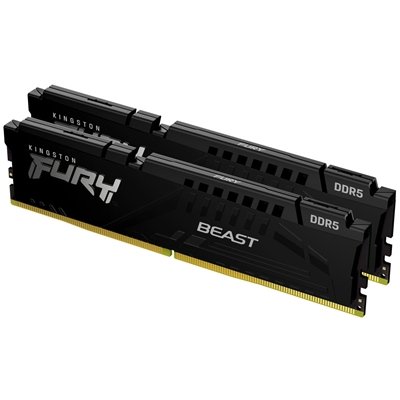

Kingston FURY KF564C32BBK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS
• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
• XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
• XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V
• XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V

SPECIFICATIONS

CL(IDD)
40 cycles

Row Cycle Time (tRCmin)
48ns(min)

Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min)

Row Active Time (tRASmin)
32ns(min)

UL Rating
94 V-0

Operating Temperature
0-85

Storage Temperature
-55-100
