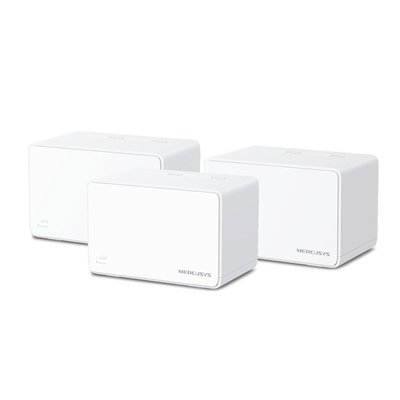

AX3000 Whole Home Mesh WiFi 6 System

Dual Band WiFi 6 Speeds up to 3000 Mbps
2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

Seamless Roaming with One Unified Network
Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.

Whole Home Coverage
Blanket up to 7,000 ft2 (650 m2) with high-speed WiFi, eliminating WiFi dead zones at your home.

Connect over 150 Devices
Provide fast and stable connections over 150 devices.

Easily Mange Your Home Network
Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.

Full Gigabit Ports
3x Gigabit ports per Halo unit for lightning-fast wired connections.

Specifications

Wireless Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds
2402 Mbps on 5 GHz, 574 Mbps on 2.4 GHz

Reception Sensitivity
2.4GHz:
11g 6Mbps:-96.5dBm
11g 54Mbps:-78dBm
11AX HE20 MCS0:-96.5dBm
11AX HE20 MCS11:-65dBm
11AX HE40 MCS0:-93.5dBm
11AX HE40 MCS11:-63dBm
5GHz:
11a 6Mbps:-96dBm
11a 54Mbps:-78dBm
11ac VHT20 MCS8:-74.5dBm
11ac VHT40 MCS9:-70.5dBm
11ac VHT80 MCS9:-66.5dBm
11AX HE20 MCS11:-66dBm
11AX HE40 MCS11:-63dBm
11AX HE80 MCS11:-61dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP) Wireless Security
WPA-PSK/WPA2-PSK/WPA3

Mesh protocol
802.11k/v/r

Operation Modes
Router, Access Point

Quality of Service
WMM

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Local Management, Remote Management, Multi-Managers

DHCP
Server, Client

Firewall Security
SPI Firewall

Protocols
Supports IPv4 and IPv6

Guest Network
2.4 GHz Guest Network,
5 GHz Guest Network

HardwareDimensions
5 x 3.2 x 3.3 in (128 x 81 x 83.7 mm)

Interfaces
3x Gigabit Ports per Halo Unit
(WAN/LAN auto-sensing)

Button
Reset button

Package Contents
3x Halo H80X Units
1x RJ45 Ethernet Cable
3x Power Adapters
Quick Installation Guide

Environment
Operating Temperature: 0C~40C (32F~104F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
