4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests

300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network

Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can’t get a 4G connection

Specifications

Wireless

Wireless Standards
IEEE 802.11b/g/n

Frequency
2.4 GHz

Signal Rate
300 Mbps

Reception Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm

Transmission Power
< 20 dBm (2.4 GHz) Wireless Security
WPA-PSK / WPA2-PSK

Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

Software

DHCP
Server

Hardware

Dimensions (W x D x H)
90x92x150.5 mm

Interfaces
1x 10/100Mbps LAN/WAN Port
1x 10/100Mbps LAN Port
2x 4G/3G External Antenna Ports
1x Nano SIM Card Slot

Button
WPS/Reset Button

Ethernet Ports
1x 10/100 Mbps LAN/WAN Port +
1x 10/100 Mbps LAN

Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)

UN:
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz)
TDD-LTE: B40 (2300 MHz)
HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)

Others

Package Contents

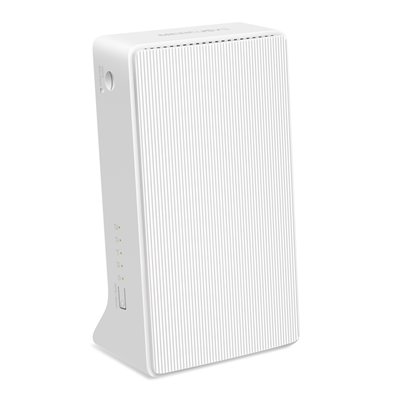

300 Mbps Wireless N 4G LTE Router (MB110-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
