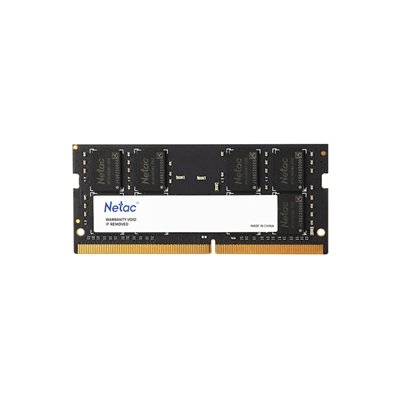

Netac 8GB No Heatsink (1 x 8GB) DDR4 3200MHz SODIMM System Memory
Netac Unbuffered Small Outline DDR4 SDRAM DIMMs (Unbuffered Small Outline Double Data Rate Synchronous DRAM Dual In-Line Memory Modules) are low power, high-speed operation memory modules that use DDR4 SDRAM devices.
Each 260-pin DIMM uses gold contact fingers. The SDRAM Unbuffered SODIMM is intended for use as main memory when installed in systems such as mobile personal computers.

Features
– Power Supply: VDD=1.2V (1.14V to 1.26V)
– VDDQ = 1.2V (1.14V to 1.26V)
– VPP – 2.5V (2.375V to 2.75V)
– VDDSPD=2.25V to 3.6V
– Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
– Low-power auto self refresh (LPASR)
– Data bus inversion (DBI) for data bus
– On-die VREFDQ generation and calibration
– On-board I2C serial presence-detect (SPD) EEPROM
– Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
– Selectable BC4 or BL8 on-the-fly (OTF)
– Databus write cyclic redundancy check (CRC)
– Temperature controlled refresh (TCR)
– Command/Address (CA) parity
– Per DRAM Addressability is supported
– 8 bit pre-fetch
– Fly-by topology
– Command/Address latency (CAL)
– Terminated control command and address bus
– PCB: Height 1.18” (30.00mm)
– Gold edge contacts
– RoHS Compliant and Halogen-Free

Memory Capacity
8GB (1 x 8GB)

Memory Type
DDR4

Module Type
SODIMM

Memory Speed
DDR4-3200MHz

Pin Configuration
260-pin

Registered/Unbuffered
Unbuffered

Error Correction
Non-ECC

CL-tRCD-tRP-tRAS
22-22-22-52

Heat Sink
/

Working Voltage
1.2v
