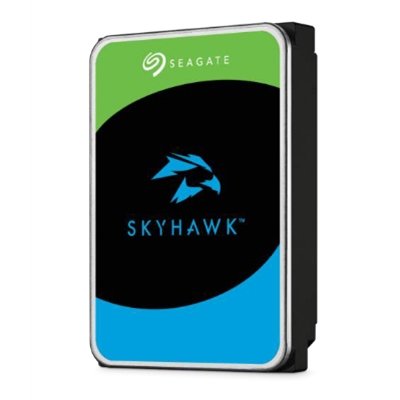

SkyHawk leverages Seagate’s extensive experience in designing drives purpose-built for surveillance applications. ImagePerfect firmware is designed to ensure seamless video footage capture in 24×7 surveillance workloads1 that record video from 64 HD cameras. SkyHawk Health Management actively helps protect your surveillance storage by focusing on prevention, intervention, and recovery options.2 Included is RAID RapidRebuild, which provides 3x faster volume rebuilds over traditional RAID rebuilds. Unparalleled data protection with included 3-year Rescue Data Recovery Services plan, helping protect important video data with Seagate’s in-house data recovery services. RV sensors built in allow drives to maintain performance in multi-bay systems, giving customers the flexibility to scale their systems when more storage is needed. ATA streaming support enables recordings from up to 64 HD cameras for smooth, uninterrupted footage. 1 M hours MTBF, 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs. Lower power consumption means a reduction in heat emissions, which improves reliability in surveillance solutions. Tarnish-resistant components help protect drive from environmental elements, increasing field reliability

Specifications

General

Device Type
Hard drive internal

Capacity
2 TB

Form Factor
3.5″

Interface
SATA 6Gb/s

Buffer Size
256 MB

Features
RV Sensor, 24×7 continuous operation, Conventional magnetic recording (CMR), tarnish-resistant

Width
101.6 mm

Depth
146.99 mm

Height
20.2 mm

Weight
415 g

Bundled with
3 years Seagate Rescue Data Recovery

Performance

Drive Transfer Rate
600 MBps (external)

Internal Data Rate
180 MBps

Reliability

MTBF
100,000 hours

24×7 Operation
Yes

Non-Recoverable Errors
1 per 10^14

Load / Unload Cycles
600,000

Expansion & Connectivity

Interfaces
1 x SATA 6 Gb/s

Compatible Bay
3.5″

Power

Voltage Required
5 – 12 V

Power Consumption
3.7 Watt (active) 2.5 Watt (idle) 0.25 Watt (sleep) 0.25 Watt (standby)

Software & System Requirements

Software Included
SkyHawk Health Management

Manufacturer Warranty

Service & Support

Limited warranty
3 years

Environmental Parameters

Min Operating Temperature
0 °C

Max Operating Temperature
65 °C

Min Storage Temperature
-40 °C
