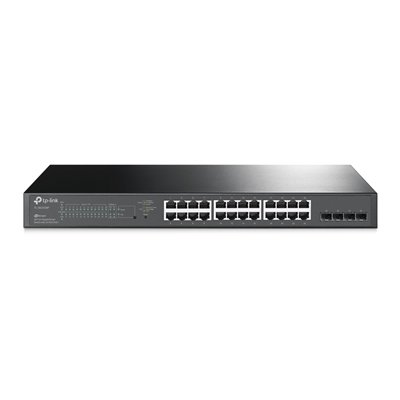

JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+

Key Features

250 W PoE Budget
24x 802.3at/af-compliant PoE+ ports with a total power supply of 250 W

Full Gigabit Ports
24x gigabit PoE+ ports and 4x gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management
Cloud access and Omada app for ultra convenience and easy management.

Static Routing
Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications
L2/L3/L4 QoS and IGMP snooping.

IPv6
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Specifications

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface
24 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x Gigabit SFP Slots

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Fan Quantity
2

Power Supply
100-240V AC, 50/60Hz

PoE+ Ports(RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W

Dimensions ( W x D x H )
17.3 x 8.7 x 1.73 in (440 x 220 x 44 mm)

Mounting
Rack Mountable

Max Power Consumption
32.1 W (110 V/ 60 Hz with no PD connected)
308.6 W (110 V/ 60 Hz with 250 W PD connected)

Switching Capacity
56 Gbps

Bandwidth/Backplane
56 Gbps

Packet Forwarding Rate
41.7 Mpps

MAC Address Table
8K

Packet Buffer Memory
4.1 Mbit

Jumbo Frame
9KB

Certification
CE, FCC, RoHS

Package Contents
TL-SG2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet

System Requirements
Microsoft Windows XP, Vista or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux.

Environment
Operating Temperature: 0–50 C (32–122 F);
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
