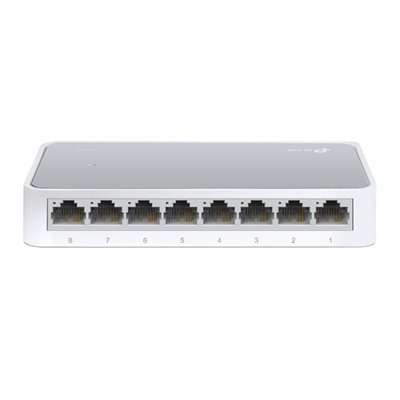

8-Port 10/100Mbps Desktop Switch

Key Features
port 10/100M Fast Ethernet Desktop Switch
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power, link, activity
Plastic case, desktop or wall-mounting design
External Power Adapter supply

What This Product Does
TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.

Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD

Interface
8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity
Fanless

Power Supply
External Power Adapter(Output: 5.0VDC / 0.6A)

External Power Supply
100-240VAC, 50/60Hz

Buffer Size
768Kb

Data Rates
10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex

LED Indicator
Power, 1, 2, 3, 4, 5, 6, 7, 8

Dimensions ( W x D x H )
5.3 x 3.1 x 0.9 in. (134.5 x 79 x 22.5mm)

Max Power Consumption
2.05W(220V/50Hz)

Max Heat Dissipation
6.99BTU/h

SOFTWARE FEATURES

Transfer Method
Store and Forward

Advanced Functions
Green Technology
802.3X Flow Control, Back Pressure

OTHERS

Certification
FCC, CE, RoHS

Package Contents
8-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide

Environment
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40C~60C (-40F~140F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
