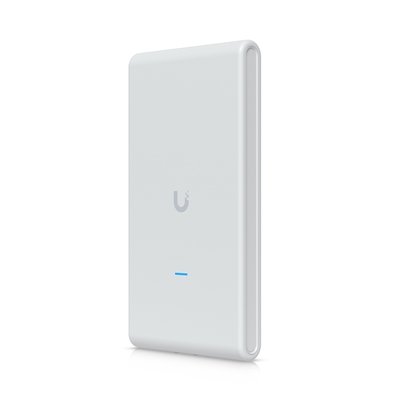

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.

WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE
GbE uplink with (1) GbE passthrough port
Versatile wall and pole mounting
Weatherproof (outdoor exposed)

Dimensions
343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4″)

Weight
819 g (1.8 lb)

Enclosure Material
UV-stabilized polycarbonate

Mount Material
Aluminum alloy, steel

Pole Diameter
1~2.5″ on pipe outer diameter

Weatherproofing
IPX6

Networking Interface
(2) GbE RJ45 ports

Management Interface
Ethernet
WiFi

Power Method
POE

Power Supply
UniFi PoE switch
48V, 0.5A PoE adapter (Included)

Supported Voltage Range
42.5—57V DC

Max. Power Consumption
9W

Max. TX Power
2.4GHz : 22 dBm
5GHz : 27 dBm

MIMO
2.4GHz : 2 x 2 (DL/UL MU MIMO)
5GHz : 2 x 2 (DL/UL MU MIMO)

Max. Data Rate
2.4GHz : 573.5 Mbps (BW40)
5GHz : 2.4 Gbps (BW160)

Antenna Gain
2.4GHz : 8 dBi
5GHz : 8 dBi

LEDs
White/Blue

Button
Factory Reset

Mounting
Wall, pole (Included)

WiFi Standards
802.11a/b/g/n/ac/ax (WiFi 6)

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID
8 Per Radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest Traffic Isolation
Supported

Concurrent Clients
350+
