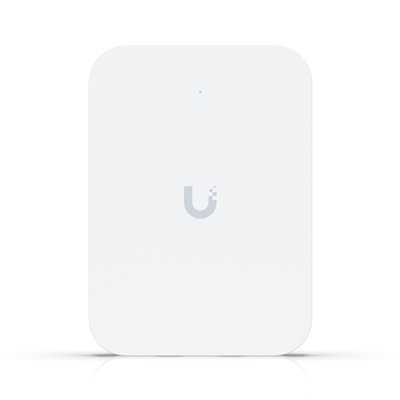

Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Note. PoE+ input required for single-port PoE output.

Dimensions
137 x 98.7 x 30.2 mm
(5.4 x 3.9 x 1.2″)

WiFi Standard
WiFi 7

Spatial Streams
4

Coverage Area
115 m2 (1,250 ft2)

Max. Client Count
200+

Uplink
2.5 GbE

Mounting
Wall
(Metal Wall Mount Included)

Power Method
PoE
PoE+ (Required for PoE output)

MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz
4.3 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
5 GHz
8 dBi

2.4 GHz
4 dBi

Max. TX Power
5 GHz
24 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
13W (Excluding PoE output)

Supported Voltage Range
42.5—57V DC

Networking Interface
(3) 2.5 GbE RJ45 ports

Weight
400 g (14.1 oz)

Management
Ethernet

Built-In Switch
(1) PoE+ input and
(1) PoE output

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Aluminum alloy

LEDs
White/Blue

Certifications
CE, FCC, IC
