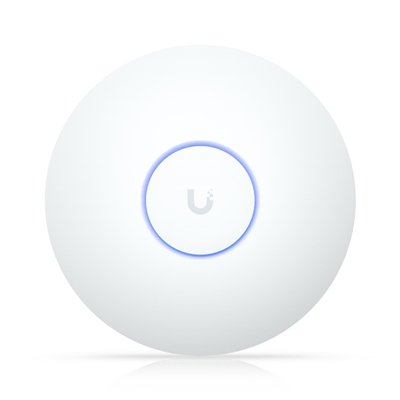

U7 Long-Range

Overview

Dimensions
d175.7 x 43 mm
(d6.9 x 1.7″)

WiFi Standard
WiFi 7

Spatial Streams
5

Coverage Area
160 m² (1,750 ft²)

Max. Client Count
300+

Uplink
2.5 GbE

Mounting
Ceiling, Wall
(Plastic Mounting Plate included)

Power Method
PoE

MIMO

5 GHz
3 x 3 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz
4.3 Gbps (BW160)

2.4 GHz
688 Mbps (BW40)

Antenna Gain

5 GHz
6 dBi

2.4 GHz
4 dBi

Max. TX Power

5 GHz
27 dBm

2.4 GHz
26 dBm

Supported Data Rates

802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 – MCS11 NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80/160)

802.11n
6.5 Mbps to 450 Mbps (MCS0 – MCS23 , HT 20/40)

Features

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal

Custom Branding Landing Page
Yes

Voucher Authentication
Yes

Payment-Based Authentication
Yes

External Portal Server Support
Yes

Password Authentication
Yes

Guest Network Isolation
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Hardware

Max. Power Consumption
14W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) 2.5 GbE RJ45 port

Weight
448 g (15.8 oz)

Management
Ethernet

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Polycarbonate, galvanized steel (SGCC)

LEDs

System
White/Blue

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity
5 to 95% noncondensing

Software

Application Requirements

UniFi Network
Version 9.1.120 and later

Mobile App
iOS version 10.20.2 and later
Android version 10.21.7 and later
