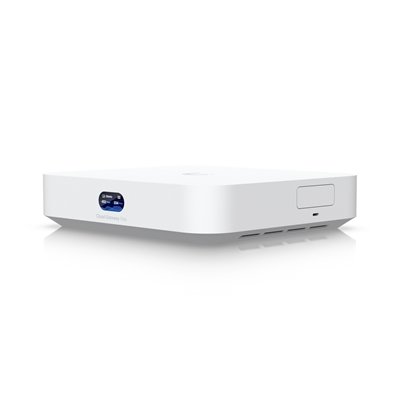

Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.

Dimensions
141.8 x 127.6 x 30 mm
(5.6 x 5 x 1.2″)

UniFi Application Suite
Network
Yes

Protect
Yes

Access
Yes

Talk
Yes

Connect
Yes

Managed UniFi Devices
30+

Managed Cameras
(15) HD
(8) 2K
(5) 4K

Simultaneous Users Connected
300+

Default WAN Ports
(1) 2.5 GbE RJ45

Default LAN Ports
(4) 2.5 GbE RJ45

IDS/IPS Throughput
2.3 Gbps

Form Factor
Compact desktop

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI and Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
55,000+ with CyberSecure

License-Free SD-WAN
Yes

Site to Site VPN
Site Magic
Yes

IPsec
Yes

OpenVPN
Yes

VPN Server
Identity Endpoint One-Click VPN
Yes

Teleport Zero-Configuration VPN
Yes

WireGuard
Yes

OpenVPN
Yes

L2TP
Yes

VPN Client
OpenVPN
Yes

WireGuard
Yes

Multi-WAN Load Balancing
Yes

Dynamic Routing – OSPF
Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

MAC Address Table Size
2000

Policy-based WAN and VPN Routing
Yes

Customizable DHCP Server
Yes

IPv6 ISP Support
Yes

IGMP Proxy
Yes

NVR Storage
Optional

Max. Power Consumption
USB type C (5V DC/5A)

Power Supply
USB type C (5V DC/5A) (Adapter included)

Supported Voltage Range
100—240V AC

System Memory
3 GB

Weight
Without SSD: 460 g (1 lb)
With SSD: 519 g (1.1 lb)

Enclosure Material
Polycarbonate

LCM Display
0.96″ status display

Management
Ethernet
Bluetooth

LEDs
Ethernet

Certifications
CE, FCC, IC
