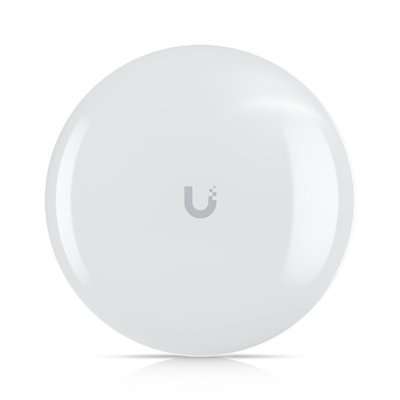

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.

Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
PoE adapter included. PoE+ input required for PoE passthrough.

Dimensions
d189.5 x 64.3 mm
(d7.4 x 2.5″)

WiFi Standard
WiFi 5

Spatial Streams
2

Coverage Area
5 km (3.1 mi)

Mounting Locations
Wall/Pole

Weatherproofing
IPX6

Power Method
PoE
PoE+ (Required for PoE output)

MIMO
2 x 2

Max. Data Rate
867 Mbps (BW80)

Antenna Gain
19 dBi

Max. TX Power
25 dBm

Max. Conducted TX Power
25 dBm (Combined)

Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)

Wireless Security
WPA2 AES (Always On)

Max. Power Consumption
9W

Supported Voltage Range
42.5—57V DC

Networking Interface
(2) GbE RJ45 ports

Antennas
Internal

Management
(1) PoE in (PoE output not used)
(1) Passive PoE output

Wind Loading
69 N at 200 km/h (15.5 lbf at 125 mph)

Weight
Device: 431 g (0.95 lb)
With mount: 515 g (1.1 lb)

Mount Material
UV-stabilized polycarbonate, stainless steel

Enclosure Material
UV-resistant polycarbonate

Pole Mount Diameter
0.8–2.1″ (20–53.1 mm)

Button
(1) Factory-reset

System LEDs
Power, Ethernet, (4) signal strength

Channel Bandwidth
20/40/80 (MHz)

Certifications
CE, FCC, IC
