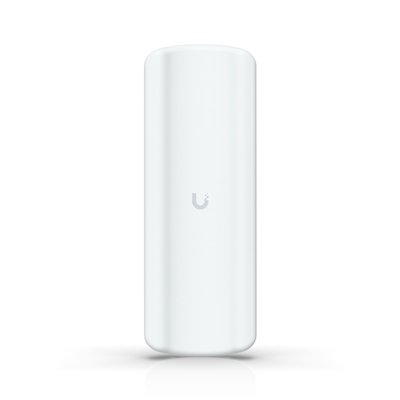

Device Bridge Pro Sector

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.

Overview

Dimensions
360.9 x 129.6 c 71.4 mm
(14.2 x 5.1 x 2.8″)

WiFi Standard
WiFi 5

Spatial Streams
2

Coverage Area
5 km (3.1 mi)

Mounting Locations
Pole

Weatherproofing
IPX6

Power Method
PoE

Performance

MIMO
5 GHz – 2 x 2

Max. Data Rate
5 GHz – 400 Mbps (BW40)

Antenna Gain
5 GHz – 17 dBi

Max. TX Power
5 GHz – 25 dBm

Max. Conducted TX Power
25 dBm (Combined)

Supported Data Rates
802.11ac (WiFi 5) – 6.5 Mbps to 400 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40)
802.11n – 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11a – 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Security
WPA2 AES

Hardware

Max. Power Consumption
6W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) GbE RJ45 port

Antennas
Internal

Management
Ethernet
WiFi

Channel Bandwidth
20/40 MHz

Wind Loading
128.2N at 200 km/h

Weight
Device: 782 g (1.7 lb)
With mount: 835 g (1.8 lb)

Enclosure Material
UV-stabilized polycarbonate

Mount Material
UV-stabilized polycarbonate, stainless steel

Pole Mount Diameter
0.9—2.4″ (24—60 mm)

Button
(1) Factory-reset

LEDs
System – Power, Ethernet

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Ambient Operating Temperature
-40 to 60°C (-40 to 140°F)

Ambient Operating Humidity
5 to 95% noncondensing
