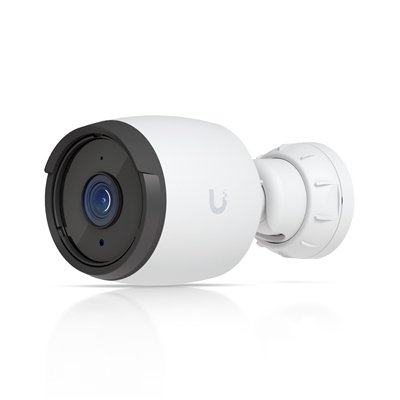

All-weather 4K PoE camera with a 1/1.8inch 8MP image sensor, Multi-TOPs AI Engine, and long-range IR night vision

Overview

Dimensions

Without mount
82 x 88.8 mm
(3.2 x 3.5inch)

With mount
82 x 153 mm
(3.2 x 6inch)

IR Night Vision
30 m (98 ft)

Face Recognition
Yes

License Plate Recognition
Yes

Smart Detections (People, Vehicles, Animals)
Yes

Resolution
4K

Field of View
H: 109.9°, V: 56.7°, D: 134.1°

Audio
Microphone

Weatherproofing
IP66

Tamper Resistance
IK04

Mounting
Wall, ceiling, pole mount (Included)
Junction box, angled base (Optional)
UniFi Application Suite
Protect Yes

Performance

Networking Interface
10/100 MbE RJ45 port

Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Max. Frame Rate
30 FPS

Resolution
8MP 3840 x 2160 (16:9)

Optics

Sensor
1/1.8inch 8MP

Lens
Fixed focal length

Night Mode
Built-in IR LED illumination and IR cut filter

Hardware

Max. Power Consumption
9.9W

Supported Voltage Range
37–57V DC

Power Method
PoE

Processor
Quad-core Arm Cortex -A53 based chip

Pole Mount Diameter
1.5–2inch (38–50 mm)

Weight
Without mount: 587 g (1.3 lb)
With mount: 737 g (1.6 lb)

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Wall mount: aluminum alloy, polycarbonate
Pole mount: aluminum alloy

Button
(1) Factory-reset

Ambient Operating Temperature
-20 to 50° C (-4 to 122° F)

Ambient Operating Humidity
0 to 90% noncondensing

NDAA Compliant
Yes

Certifications
CE, FCC, IC
