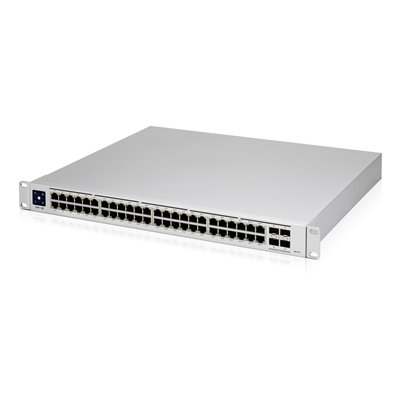

48-port switch with (40) 802.3at PoE+ ports, (8) 802.3bt PoE++ ports, and (4) 10 GB SFP+ ports. Powerful second-generation UniFi switching.

UniFi Switch Pro 48 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (40) 802.3at (PoE+) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 48 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 PoE is the ideal access layer switch for any UniFi solution – it combines up to 600W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Features
(8) Gigabit RJ45 802.3bt PoE++ ports
(40) Gigabit RJ45 802.3at PoE+ ports
(4) 10G SFP+ ports
Layer 2 and Layer 3 features
600W maximum PoE power
UniFi SmartPower RPS DC input
Near-silent cooling
1.3″ touchscreen display
Managed by UniFi Network Controller

Specifications

Dimensions
442.4 x 399.6 x 43.7 mm
(17.42 x 15.73 x 1.72″)

Weight
6.25 kg (13.78 lb)
6.34 kg (13.98 lb)

Interfaces
(48) 10/100/1000 RJ45 Ports
(4) 1/10G SFP+ Ethernet Ports

Management
Ethernet In-Band

Power Supply
100-240VAC/50-60 Hz
52VDC, 11.54A; 11.5VDC, 5.22A
AC/DC, Internal, 120W
100 to 240VAC
