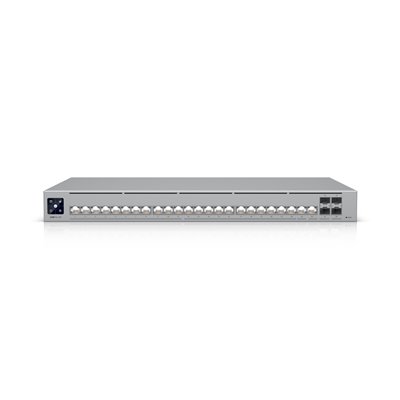

Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.

Dimensions
442 x 285 x 44 mm
(17.4 x 11.2 x 1.7″)

Port Layout
2.5 GbE RJ45
22

10 GbE RJ45
2

10G SFP+
4

Redundancy
DC Power Backup

Layer 3
Yes

Form Factor
Rack mount (1U)

Etherlighting
Yes

Switching Capacity
230 Gbps

Total Non-Blocking Throughput
115 Gbps

Forwarding Rate
171.12 Mpps

Supported VLANs
1000

MAC Address Table Size
32000

L3 Table Size
ARP Entries
12,000

IPv4 Routes
12,000

Packet Buffer Size
2 MB

DHCP Server (Local Networks)
Yes

STP and RSTP
Yes

QoS (DSCP
Yes

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
Yes

IGMP Snooping
Yes

802.1X Control
Yes

MAC-Based ACLs & Device Isolation
Yes

DHCP Snooping and Guarding
Yes

Egress Rate Limit
Yes

Flow Control
Yes

Storm Control
Yes

Multicast & Broadcast Rate Limiting
Yes

MAC Address Blocking
Yes

IP-Based ACLs & Network Isolation
Yes

MAC-Based Port Restriction
Yes

Port Isolation
Yes

Port Mirroring
Yes

Jumbo Frames
Yes

LLDP-MED
Yes

Voice VLAN
Yes

Loop Protection
Yes

Max. Power Consumption
60W

Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method
AC input

Power Supply
AC/DC, internal, 60W

Supported Voltage Range
100—240V AC

Management
Ethernet
AR

Heat Dissipation (Excluding PoE Output)
102.36 BTU/hr

Weight
Without mounting brackets: 4.2 kg (9.2 lb)
With mounting brackets: 4.3 kg (9.4 lb)

Enclosure Material
SGCC steel

LCM Display
1.3″ touchscreen

Certifications
CE, FCC, IC
